The Ultimate Performance Trace VOC Analyzer
Detection limit: < 1 pptv
Sensitivity: > 20000 cps/ppbv
Mass resolution: > m/Δm 20000

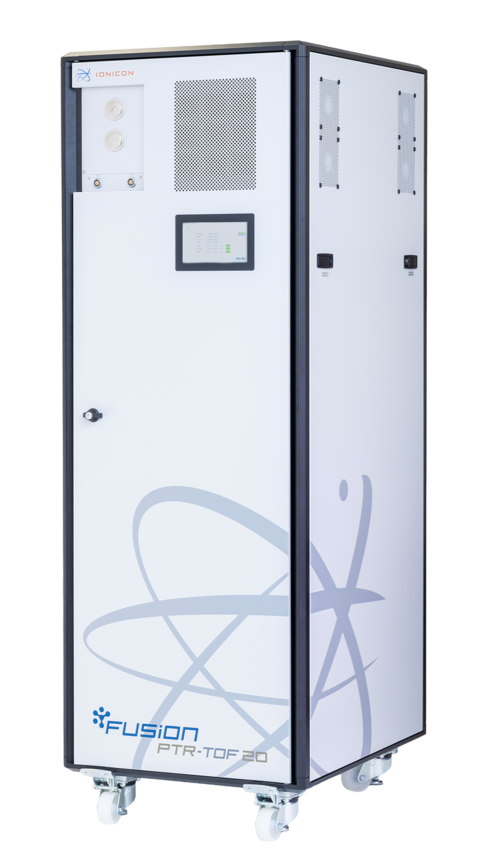

The new FUSION PTR-TOF 20 offers the highest mass resolving power and exceptional sensitivity for outstanding analytical performance. It is powered by a new ioniTOF generation, the Invion source for rapid reagent ion switching with stable ionization conditions and the ultra-clean FUSION PTR reaction chamber, enabling marketleading detection limit below 1pptv.
Unparalleled Analytical Power
Without any sample pretreatment, all IONICON PTR-TOF instruments provide quantitative analysis of the vast majority of VOCs, in a split second for the entire mass-spectrum. The FUSION PTR-TOF 20’s exceptional mass resolution, ranging from m/Δm 20 000 to 25 000 (FWHM), provides the critical advantage for the analysis of the most complex analytical sample.
The FUSION PTR-TOF 20 incorporates IONICON’s genuine PTR-MS technology, patented TRU-E/N ion chemistry, and is available as bipolar set-up for both, positive and negative reagent ions, for an unmatched range of organic and inorganic compounds.
Go for the ultimate performance of the all-in-one FUSION PTR-TOF 20 and contact us for a quote!
Technical specifications
| Mass resolution | m/Δm > 20 000 (FWHM) up to m/Δm 25 000 with limited sensitivity |
| Sensitivity | m/z 121: 5 000 cps/ppbv @ m/Δm 20 000 (FWHM) m/z 121: 20 000 cps/ppbv @ m/Δm 10 000 (FWHM) |
| Detection limits | m/z 121 < 1 pptv (1 min) @ m/Δm 20 000 (FWHM) m/z 121 < 5 pptv (1 sec) @ m/Δm 20 000 (FWHM) |
| Ion Source | New Invion ion source for switching between H3O+, NH4+, NO+ or O2+, with bipolar option: also CO3- |
| PTR reactor | Ultra-clean, gastight FUSION reaction chamber |
| Weight | ~ 200 kg |
| Dimensions (w x h x d) | 60x175x80 cm |
| Power supply | 115/230 V, typical operation: < 1500 W |
Specifications are subject to change without prior notice.
