High Performance Trace VOC Analyzer
Detection limit: < 0.2 pptv
Sensitivity: up to 80000 cps/ppbv
Mass resolution: > m/Δm 10000

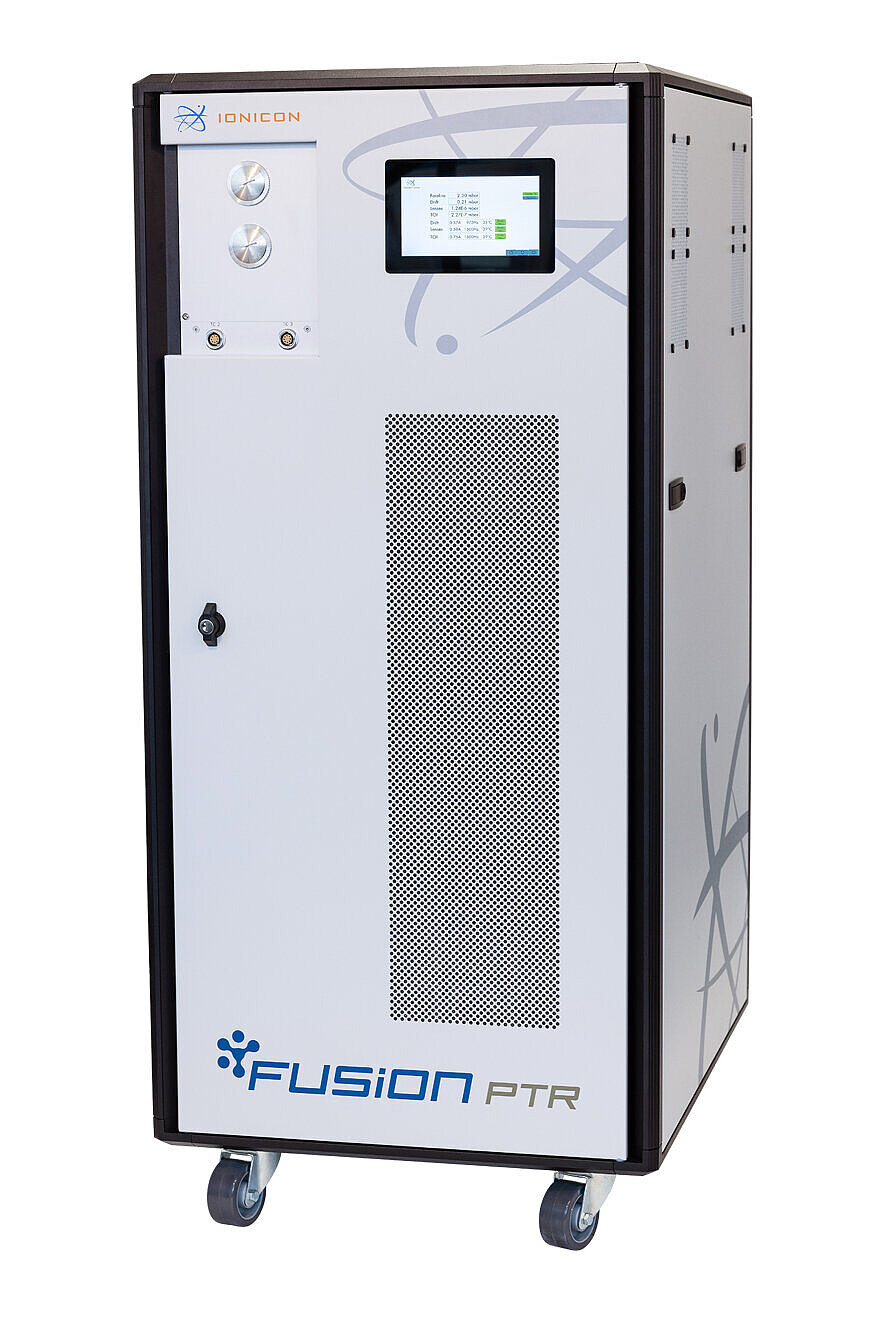

The FUSION PTR-TOF 10 combines all advantages only genuine IONICON PTR technology can offer:
- Ultra-clean FUSION reaction chamber
- Market-leading detection limits < 200 ppqv
- Invion source for nearly instant reagent ion switching
- TRU-E/N certified ion-chemistry quality
At a glance
The FUSION PTR-TOF 10 offers a unique combination of sensitivities up to 80000 cps/ppbv, LoDs down to < 200 ppqv and fast reagent ion switching in ~1s. The FUSION PTR technology is best combined the with ioniTOF 10, offering a mass resolution of typically 10000-15000 m/Δm.
Go for the high performance of the all-in-one FUSION PTR-TOF and contact us for a quote!
Technical Note in Analytical Chemistry
Ultrahigh Sensitivity PTR-MS Instrument with a Well-Defined Ion Chemistry
Tobias Reinecke, Markus Leiminger, Alfons Jordan, Armin Wisthaler, and Markus Müller
Analytical Chemistry Article ASAP
DOI: 10.1021/acs.analchem.3c02669
Technical specifications
| Mass resolution | > 10000 m/Δm (FWHM) certified for m/z > 121 up to 15000 m/Δm (FWHM) achievable for selected m/z |
| Sensitivity | > 40000 cps/ppbv certified at m/z 121 (trimethylbenzene) at 10000 m/Δm up to 80000 cps/ppbv achievable for selected compounds |
| Response time | < 100 ms |
| Detection limits | at m/z 121 (trimethylbenzene): < 200 ppqv averaged over 60s, < 1 pptv averaged over 1 s |
| Ion Source | New Invion ion source for switching between H3O+, NH4+, NO+ or O2+, with bipolar option: also CO3- |
| PTR reactor | Ultra-clean, gastight FUSION reaction chamber |
| Weight | ~ 185 kg |
| Dimensions (w x h x d) | 60x135x80 cm |
| Power supply | 115/230 V, standby/typical operation: < 400/700-1000 W |
Specifications are subject to change without prior notice.
