The World's Leading PTR-MS Trace Analyzers Company

PTR-MS Trace VOC Analyzers

Extremely sensitive real-time PTR-TOF VOC and organic particle analyzers. The world's bestselling, high resolution, most sensitive PTR-TOFMS series with TRU-E/N and patented ion-chemistry quality. Find the perfect match for your analytical challenge!

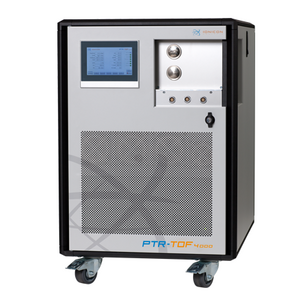

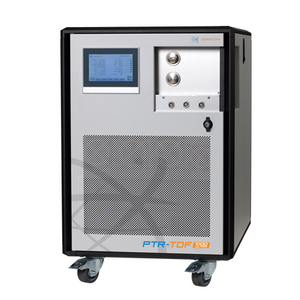

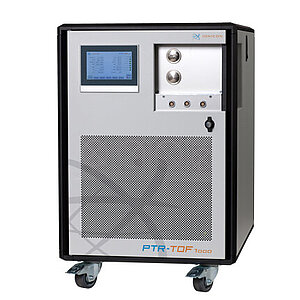

  PTR-TOF 1000 PTR-TOF 1000 ultra PTR-TOF 1000 ultra PTR-TOF 4000 PTR-TOF 4000 PTR-TOF 6000 X2
      with X2 performance option   with X2 performance option
Main characteristics most affordable high sensitivity ultimate sensitivity high mass resolution high sensitivity
high mass resolution
high sensitivity
highest mass resolution
Mass resolution (m/dm) > 2.000 > 2.000 > 2.000 > 4.500 > 4.500 > 6.500
Sensitivity (@ m/z) 181 > 200 cps/ppb > 2.000 cps/ppb > 30.000 cps/ppb > 600 cps/ppb > 8.000 cps/ppb > 2.500 cps/ppb
Limit of detection (@ m/z 181) < 10 ppt (60 sec) <  5 ppt (60 sec) <  5 ppt (10 sec) < 5 ppt (60 sec) < 1 ppt (60 sec) < 1 ppt (60 sec)

Case Studies & Applications
