Compact IONICON High-Performance PTR-TOF-MS - Trace VOC Analyzer

Premium performance PTR-TOFMS
Detection limit: < 1 pptv
Sensitivity: > 2500 cps/ppbv
Mass Resolution: > 6500

Overview

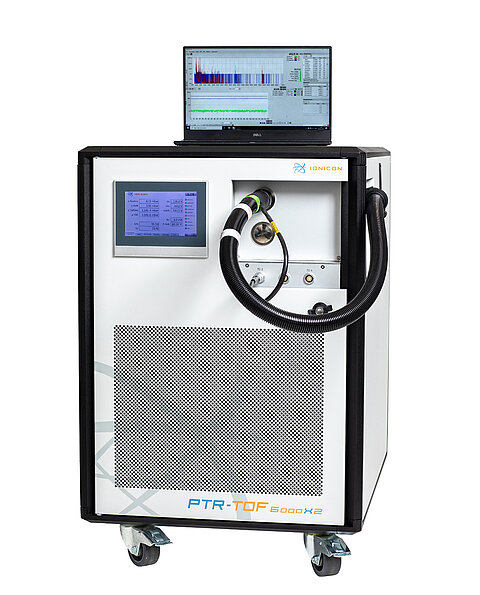

We present the PTR-TOF 6000 X2, our premium PTR-TOF trace VOC analyzer.

We conceived a unique system comprising a high-resolution ioniTOF, X2 performance enhancing features and IONICON’s exclusive PTR technology with TRU-E/N™ for the ultimate PTR-TOFMS experience.

X2 combines the latest generation of the ION-BOOSTER funnel as well as the hexapole ION-GUIDE. The ion funnel focuses the ions into the hexapole ion guide which results in nearly lossless transmission of an extremely focused ion beam into the TOF mass spectrometer. This increases the sensitivity dramatically and also improves the instrument’s mass resolving power.

The patented IONICON ion-chemistry quality ensures precise E/N conditions, well-reproducible measurement results and the highest possible level of quantification accuracy.

The future is now. Go for our ultimate performance instrument with our new PTR-TOF 6000 X2: our smallest and lightest ultimate-performance PTR-TOF trace gas analyzer. Contact us for a quote!

Technical specifications

Mass resolution > 6500 m/Δm (FWHM) for m/z > 147
> 6000 m/Δm (FWHM) for m/z > 79
Response time < 100 ms
Sensitivity > 1500 cps/ppbv for m/z 79
> 2500 cps/ppbv for m/z 181
Detection limits < 10 pptv for m/z 79 (in 1 sec)
< 1 pptv for m/z 181 (in 60 sec)
Linearity range 1 pptv - 100 ppbv
Pulse frequency up to 150 kHz
Adjustable flow 50 - 800 sccm
Inlet system heating range 40 - 180°C
(2nd inlet system and other inlet options on request)
Reaction chamber heating range 40 - 120°C
Weight < 145 kg (319,7 lbs)
Dimensions (w x h x d) 60x91x87 cm (23.7 x 35.9 x 34.3 in.)
Power supply 115/230 V, standby/typical operation: < 400/600-900 W
Interfaces - Touchscreen display
8x DI/O, 2x AI, 2x AO
Selected optional features & Accessories - SRI/SRI+ options - SRI-MS technology
- Multiplexing units
Find more options, application specific inlet systems and accessories here

Specifications are subject to change without prior notice.
