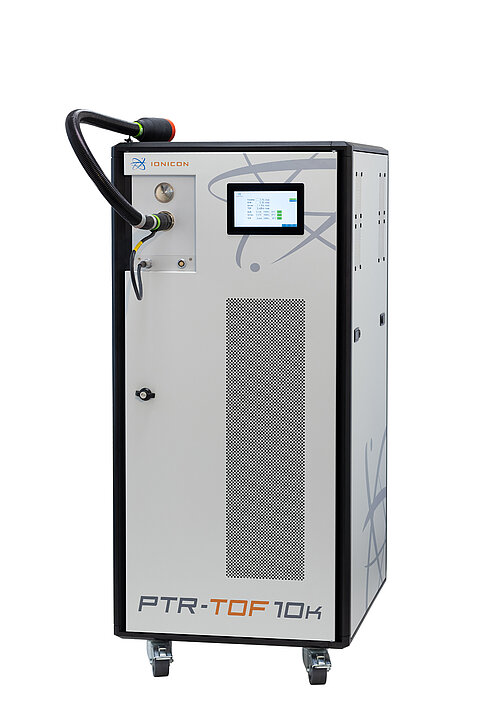

Ultimate-Resolution PTR-TOF-MS - Trace VOC Analyzer

Detection limit: < 1 pptv
Sensitivity: > 1000 cps/ppbv
Mass Resolution: > 10000

Overview

The new PTR-TOF 10k offers the highest mass resolution available combined with original IONICON TRU-E/N PTR technology.

Powered by the new ioniTOF 10k, this trace VOC analyzer features an exceptional mass resolution of 10000-15000 m/Δm. The PTR-TOF 10k has been developed with challenging samples and complex gas matrix in mind, where the additional insight provided by the high mass resolving power are a major asset for the analysis. It enables the separation and identification of substances which no other lower resolution PTR-TOF is capable of.

The instrument relies on robust and reliable, field-proven PTR technology which is trusted by hundreds of IONICON PTR-MS users and of course qualifies for our TRU-E/N label. The patented IONICON ion-chemistry quality ensures precise E/N conditions, well-reproducible measurement results and the highest possible level of quantification accuracy.

Go for the ultimate mass resolution and contact us for a quote

Are you looking for extreme performance and Next-Gen PTR-TOF technologies? Have a look at the FUSION PTR-TOF 10k!

Technical specifications

Mass resolution > 10000 m/Δm (FWHM) for m/z > 181
Response time < 100 ms
Sensitivity > 1000 cps/ppbv for m/z 181
Detection limits for m/z 181 < 10 pptv (in 1 sec)
< 1 pptv (in 60 sec)
Linearity range 1 pptv - 100 ppbv
Adjustable flow 50 - 800 sccm
Inlet system heating range 40 - 180°C
(2nd inlet system and other inlet options on request)
Reaction chamber heating range 40 - 120°C
Weight < 180 kg
Dimensions (w x h x d) 60x135x80 cm
Power supply 115/230 V, standby/typical operation: < 400/600-900 W
Interfaces - Touchscreen display
8x DI/O, 2x AI, 2x AO
Selected optional features & Accessories - SRI/SRI+ options - SRI-MS technology
- Multiplexing units
Find more options, application specific inlet systems and accessories here

Specifications are subject to change without prior notice.
